LIGHTING INNOVATION
with SALIOT Smart Lighting,
you control the orientation of the beautiful light
output to where it is needed.
Through innovative lighting,
SALIOT continues to evolve in response to the world's lighting needs.
POINT
-
POINT
0 1
Wireless operation
Easily control illuminated area, brightness level,
pan, tilt and beam angle through the app.
Fixtures offer good performance in areas
where ladders cannot easily be used like
high ceilings or narrow spaces, like show windows. -
POINT
0 2
High output
Cuts flares from the lighting equipment and
uses high central luminosity to
make products look good.
Focuses on efficiency through remote
adjustment and ease of adaption to spaces,
and a range of layouts can be changed instantly. -
POINT
0 3
High quality light
Moving spotlights of beautiful light and
adjustable colors and brightness to
make facility spaces more elegant.
A new concept of illumination that allows
lighting to suit each display scenario,
creating an optimal space.
FUNCTION
-
0 1

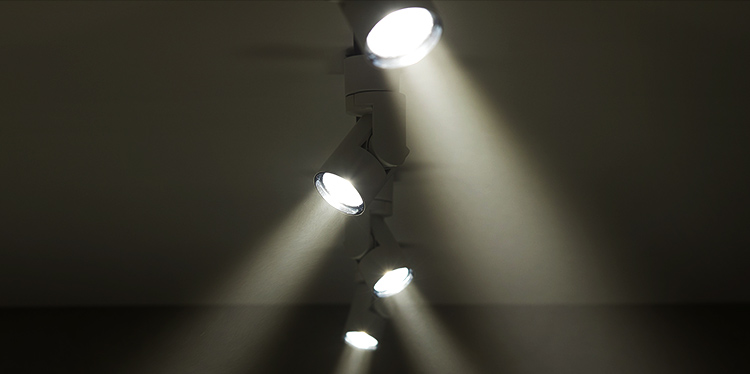

Freely adjust lighting direction and spread
Control freely using the special app
Lighting direction and spread can be recorded and recreated -
0 2

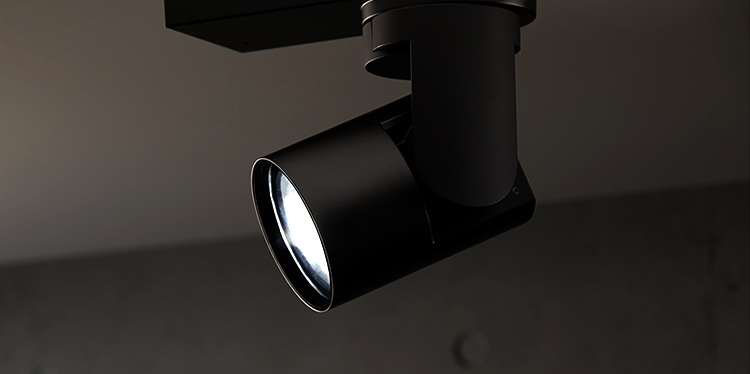

Design
Pan, tilt and beam angle
can be changed with the app. -
0 3
Tone
Color temperature adjustable from “incandescent bulb”
(2700K) to “daylight” (5000k) -
0 4
Timer control
The separately-sold timer relay allows lighting scenarios
to be replayed automatically to match a schedule
USE CASE
- Commercial facilities
- Use your own smartphone or tablet to adjust the light to suit changes of product or furnishings during events and so on.
Using the separately-sold timer relay, lighting can be changed automatically to match a schedule.
-
- Entrance halls
- Use spot lighting of guidance signs or products for a more varied space.
They offer flexibility for events and other situations as well.
-
- Car showrooms
- Change the external lighting and change the spot lighting as well to match display changes.
Display vehicles can be lit up attractively at all times.
DATA
- Electricity Consumption
- 31W (with motors 36W)
- Input Voltage
- 100V
- Size
- W: 220 / H: 247 / φ94 (mm)
- Weight
- Dimming Type 1.8kg
CCT Tunable Type 1.9kg
- Lighting Angle
- Dimming Type Naroow15°～Wide27°
CCT Tunable Type Naroow17°～Wide27°
- Movement Angle(deg)
- Horizontal: ±90° Vertical: ±90°
- Color Rendering
- Dimming Type Ra92
CCT Tunable Type 5000K Ra93 / 3500K Ra96 / 2700K Ra94
- Light Control Range
- 1～100%
- Color Temperature
- Dimming Type 3000K、3500K、4000K
CCT Tunable Type 2700K～5000K
- Flux
- Dimming Type 2184lm(Naroow)～2271lm(Wide) ※3500K
CCT Tunable Type 1953lm(Naroow)～2133lm(Wide) ※5000K
- Central Iuminosity
- Dimming Type 29723cd(Naroow)～10268cd(Wide) ※3500K
CCT Tunable Type 17943cd(Naroow)～9114cd(Wide) ※5000K
APPLICATION
Click here for the SALIOT app User Manual and Operation Quick Guide.
